CHV hydrualic vise
- Product No.:2023328104424

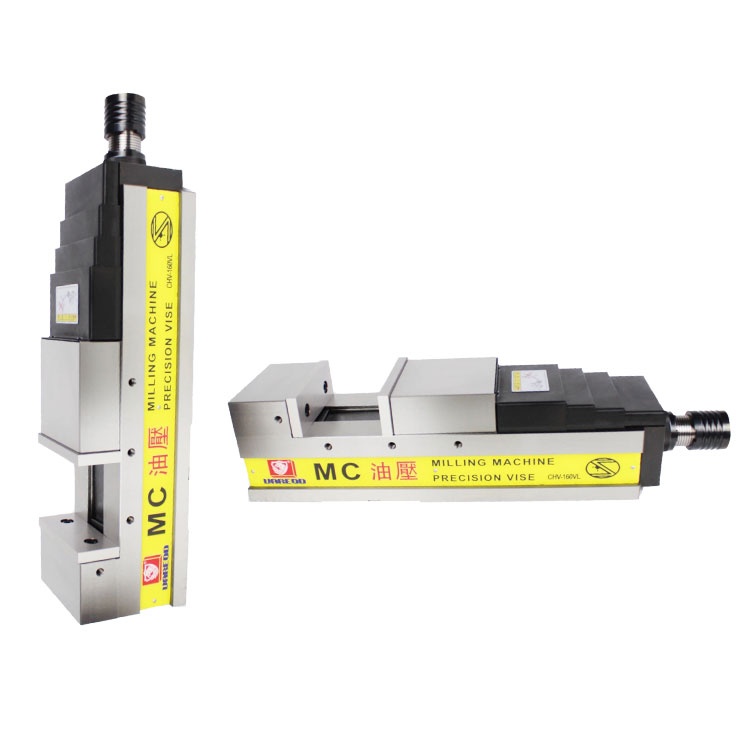

CHV MC hydraulic power vise
MC angle solid / Ken times fine hydraulic vise: high power type full range of precision hydraulic vise, for vertical and
horizontal integrated machining center, ordinary milling machine, rocker drilling, planer, boring machine, and other Mechanical
processing.
product advantages
1. MC times to pressurize the vise, apply to vertical and horizontal integrated cutting machine FMS system to do heavy cutting.
2. Gripping light, efficient and labor-saving, can reduce the labor intensity of employees.
3. Tigers with semi-circular ball under the pressure structure, can eliminate the tiger's mouth floating and the workpiece tilt.
4. Velvet body using high tensile tensile graphite cast iron (FCD60 ~ 60kgs / mm). (80,000psi) strong tensile strength, not easy
to deformation.
5. Seal and other key parts of all German oil control brand-name products.
MC angle solid / Ken times fine hydraulic vise: high power type full range of precision hydraulic vise, for vertical and
horizontal integrated machining center, ordinary milling machine, rocker drilling, planer, boring machine, and other Mechanical
processing.
1. MC times to pressurize the vise, apply to vertical and horizontal integrated cutting machine FMS system to do heavy cutting.
2. Gripping light, efficient and labor-saving, can reduce the labor intensity of employees.
3. Tigers with semi-circular ball under the pressure structure, can eliminate the tiger's mouth floating and the workpiece tilt.
4. Velvet body using high tensile tensile graphite cast iron (FCD60 ~ 60kgs / mm). (80,000psi) strong tensile strength, not easy
to deformation.
5. Seal and other key parts of all German oil control brand-name products.
MC angle solid / Ken times fine hydraulic vise: high power type full range of precision hydraulic vise, for vertical and
horizontal integrated machining center, ordinary milling machine, rocker drilling, planer, boring machine, and other Mechanical
processing.
model | model | open length(mm) | clamp force(kgf) | gross weight(kg) | dimention(mm) |
4 | CHV-100V | 130 | 4000 | 26 | 530x150x185 |
5 | CHV-130V | 180 | 4500 | 40 | 600x180x200 |
6 | CHV-160V | 240 | 4500 | 57 | 670x210x215 |
6 | CHV-160VL | 300 | 4500 | 62 | 750x210x215 |
8 | CHV-200V | 340 | 5000 | 89 | 800x250x240 |
