Products >> electric tapping machine >>

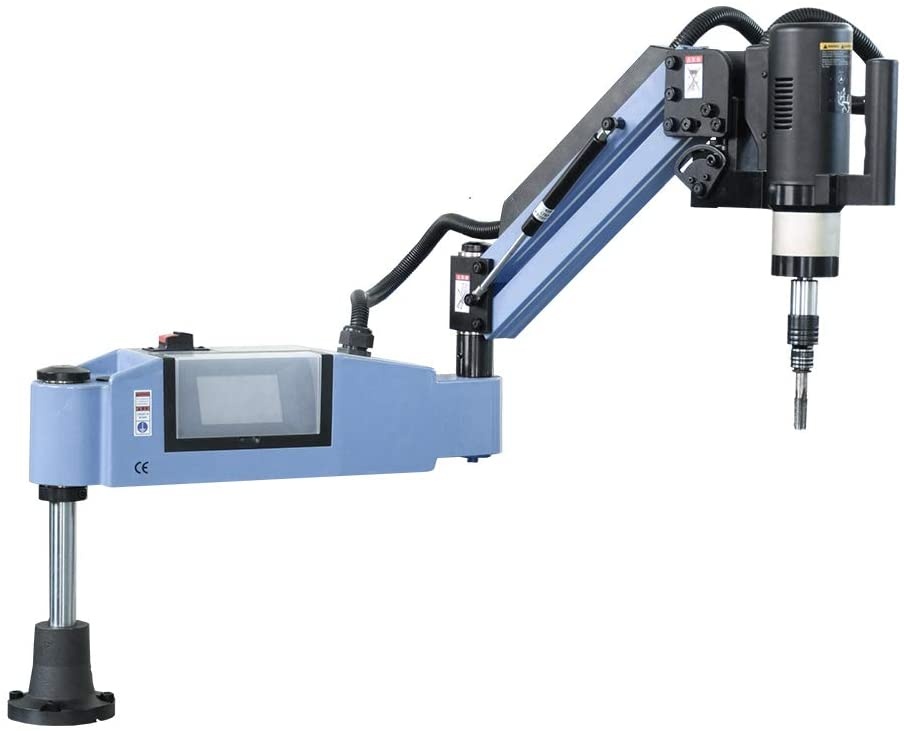

electric tapping machine M2-M10
- Product No.:TM10
Technical characteristics:
- Tapping capacity: M2 - M10
- Turning speed: 0 – 1200 RPM
- Work area: Circular 1045 mm – Height adjustable 600mm
- Voltage: 230V 50hz
- Consumption: 600W
- Torque: 18 Nm
- Weight: 27 kg
STANDARD EQUIPMENT:
- DIGITAL TOUCH SCREEN CONTROL Program in Spanish or English, manual or automatic tapping, depth control, tapping counter, torque control.
- SERVO-MOTOR AND DRIVER integrated in the tapping arm.
- TAPPING HEAD Mod. REV – Vertical – Quick Change Chuck Ø19. Mod.
- DURALUMINUM REINFORCED TILT ARMS
- TABLE FIXING COLUMN

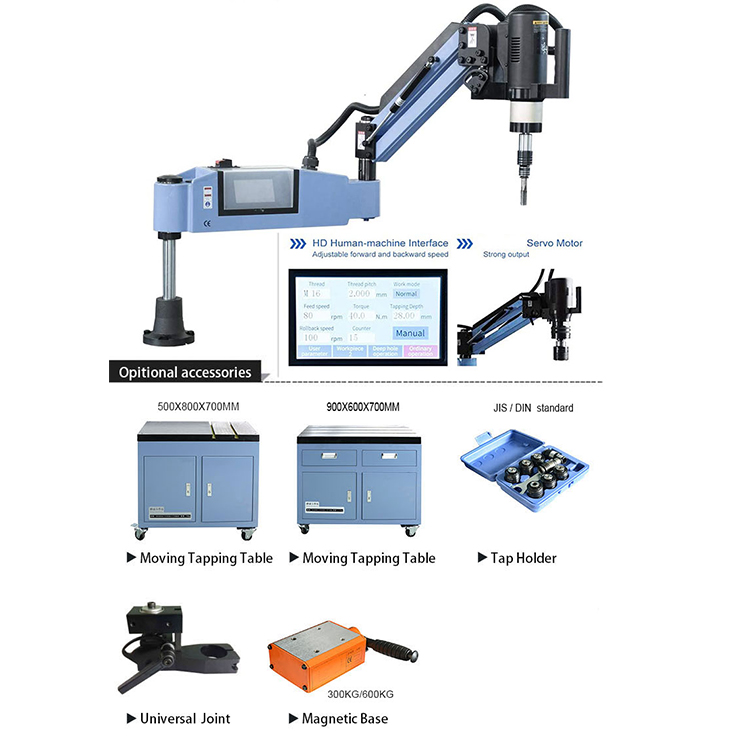

OPTIONAL EQUIPMENT:
- TABLE WITH T-SLOTS 900x600mm – With 2 drawers and cabinets
- MULTITASKING LIGHT TABLE
- PORTABLE MAGNETIC BASE 600 KG
- LONGER SUPPORT COLUMN 600MM
- CASE WITH 6 TAP ADAPTERS WITH CLUTCH FOR M12, M10, M8, M6, M5, M4.
- TAP ADAPTERS WITH CLUTCH IN METRIC, BSP, BSW, UNC, UNF, NPT IN DIN OR ISO STANDARD OR OTHERS
