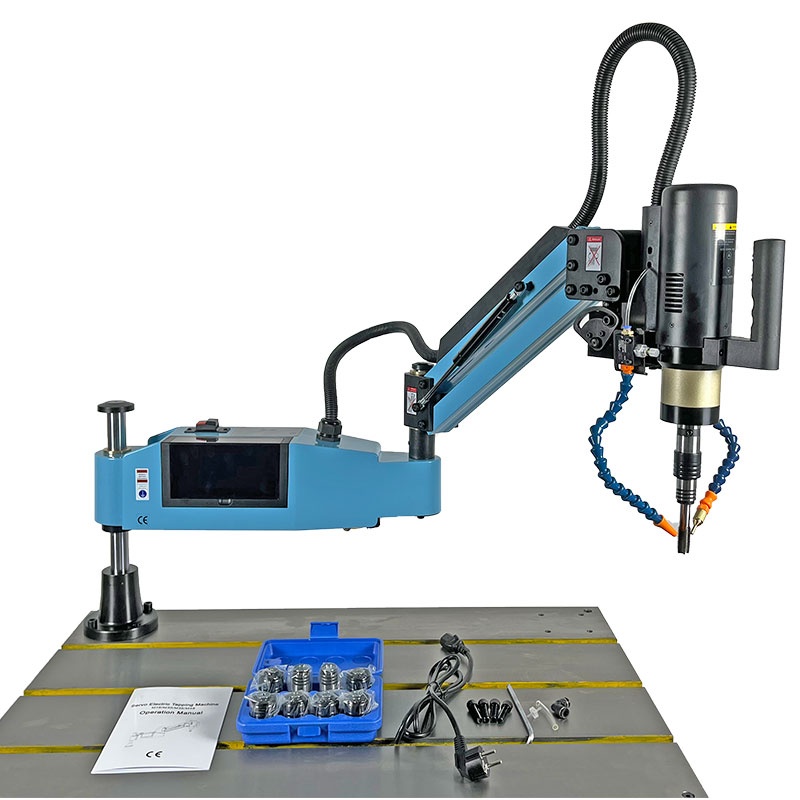

M30 oiling and cooling electric tapping machine

M30 oiling and cooling electric tapping machine

  Electric tapping machine / tapping arm
This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.
Tapping machine is equipped with a mist spray function, which ensures both cooling and lubrication of the tapping process. The system is fully integrated into the tap arm interface and can be automatically turned on and off via the HD touchscreen. When the liquid exits the spray surface of the nozzle, it breaks up into a fine mist of uniform micron-sized droplets. This allows the process to be cooled and lubricated for fast and accurate tapping. With the included flexible mist spray hose you can spray the oil/air mixture on the tap at all common angles. In addition, the mist spray also saves costs, extends the life of equipment, saves the environment and ultimately saves costs.
The tapping machine also has the following features:
HD Touchscreen for easy control in Dutch, English and French
PLC control
Self-lubricating bronze bushings for optimum flexibility
Dynamically adjustable tap depths
Integrated on/off button
Weightless operation thanks to gas springs
Powerful servo motor
Electrically adjustable torque
Adjustable input and output speed

Specifications:
No
Modle
M3-M12
M3-M16
M6-M24
M6-M30
M6-M36
M12-M48
1
Tap size
M3-M12
M3-M16
M6-M24
M6-M30
M6-M36
M12-M48
2
Voltage
220v
220V
220V
220V
220V
220V
3
Speed
0-1200rpm
0-370rpm
0-200rpm
0-200rpm
0-150rpm
50-200rpm
4
Power
600W
600w
1200W
1200w
1200W
1200W
5
Arm
1100MM/1500MM
1100MM/1500MM
1200MM/1500MM
1200MM/1500MM
1200MM/1500MM
1200MM/1500MM
6
Standard accessory
ISO M3-M12 collet
ISO M3-M16 collet
ISO M6-M24 collet
ISO M6-M30 collet
ISO M6-M36 collet
ISO M12-M48 collet
7
Weight
29kg
29kg
55kg
55kg
55kg
110kg

Supported by hi-tech infrastructure we are manufacturer and exporterss able to offer our clients a durable range of Flexible Arm Tapping Machines to our valued clients. Manufactured from premium quality metals these Flexible Arm Tapping Machines are superb in quality and assures trouble free performance. These find their wide application in various engineering industries like Rolling Mill manufacturer, Power Press Manufacturer,Paper Mill Manufacturer,Automobile Parts Manufacturer,Extruder Manufacturer and many more. Customers can also avail customized Flexible Arm Tapping solution as per their choices. Our product offering a wide range of Tapping Machines that includes Pneumatic Flexible Arm Tapping Machine, Electric Flexible Arm Tapping Machine, Hydraulic Flexible Arm Tapping Machines, CNC controlled Flexible Arm Tapping Machine, Portable Flexible Arm Tapping Machine, Portable electromagtic Flexible Arm Tapping Machine, Portable Drilling cum Tapping Machine, Portable electromagetic Drilling cum Tapping Machine, Mini Radial Machine and Tapping Machines with Multi Position Head.
