X6 High precision end mill grinder
- Product No.:X6
X6 High precision end mill grinder
technical parameter:
End mill capacity (dia. Of shank x dia. Of edge x length) |
50 x 225 x 250mm, 2" x 9" x 10" |
Swing over table |
245mm, 9-3/4" |
Longitudinal travel (X axis) |
150mm, 6" |
Cross travel of table (Y Axis) |
75mm, 3" |
Max. Wheel: |
125 x 50 x 32mm, 5" x 2" x 1-1/4" |
Tilt adjustment for wheelhead |
+35° -10° |
Air bearing swivel |
360° |
Air bearing stroke |
250mm, 10" |
Table infeed graduation |
0.02mm, 0.001 |
Air bearing graduation |
6.3MPa |
Pipe joint diameter |
Z/4" 1 |
Collet fit for spindle |
5C |
Parallelism between two tables |
0.01/100mm, 0.01/100 |
Parallelism of sleeve center line to worktable |
0.01/100 |
Motor speed: 2, 800rpm |
3, 450/2, 580rpm |
Voltage |
230V 110V/1 phase |
Power |
0.25kW 1/3HP |
Frequency |
50Hz |
Specification:
Install T-shaped slot width |
12.7mm |
Spring chuck |
5C |
The minimum feed unit |
0.0005” |

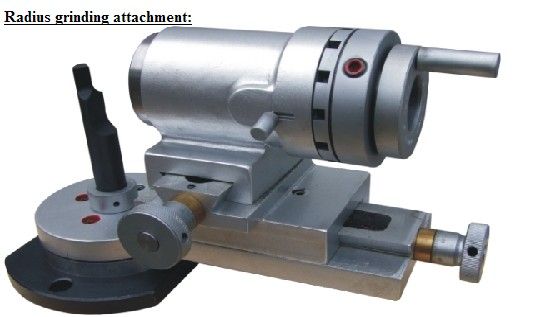

Maximum griding arc radius |
3” |
Equal dividing |
30degree |
Parallelish of work hole to base |
0.02/60mm |
Radial run out of work hole center line(60mm for hole |
0.015mm |

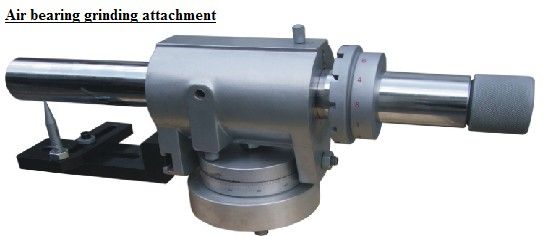

Max. Stroke of air bearing sleeve: 9"
Collect for work table: 5C
T-shaped slot width for table: 12.7mm
Air consumption: >0.63Mpa
Tracheal joints: 1/4"
Turning angle: 360degree
Parallelism of workhole center line to abse surface: 0.015mm
Radius run out of workhole center line(60mm for hole): 0.015mm
The operation vedio of grind all kinds of cutter:
