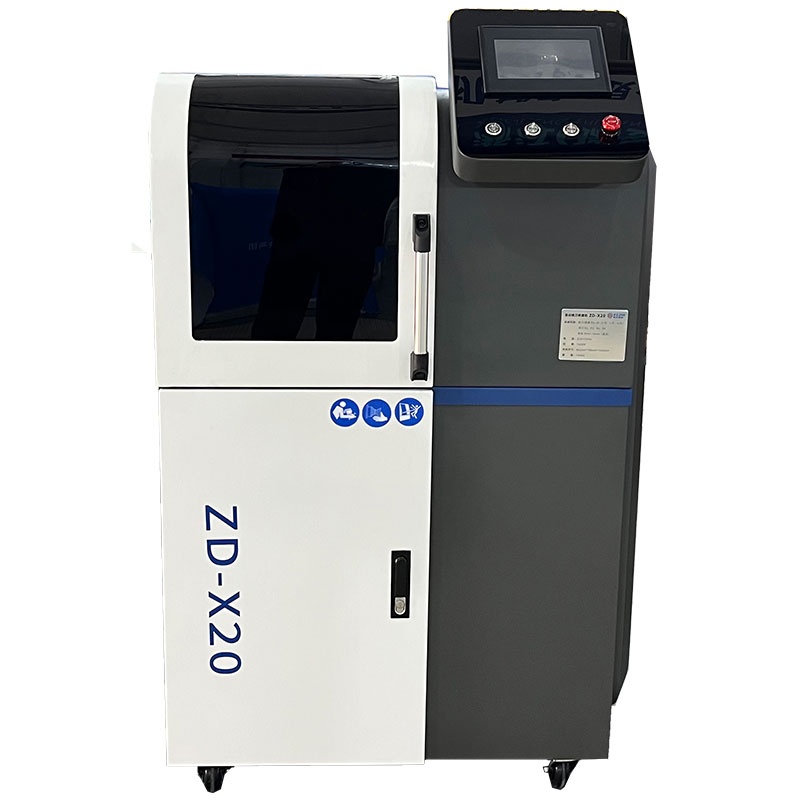

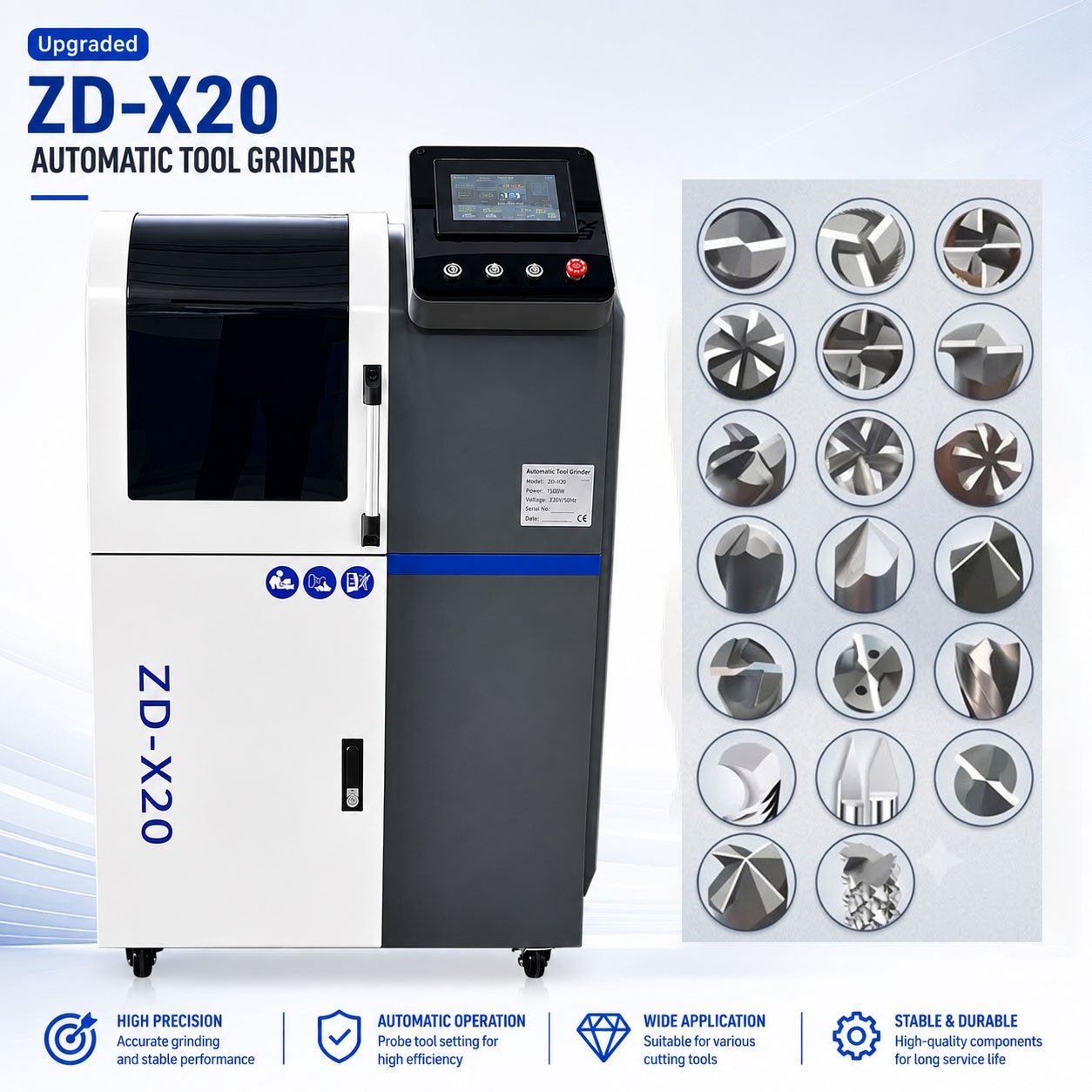

CNC universal cutter grinder

Product No.：CTG-20
Online Inquiry

CNC universal tool grinder

4-aixs concurrency control for NC tool regrinding machine

Product Advantages:
1.3D graphics interface, Easy to use, parameters can be modified according to the customer's requirements.
2.Independent developed four-axis linkage operation system.
3.Customer-made software functions for specific tool,meet different needs.
4.software upgrades is Simple,easily enjoy free upgrade service through USB.
5.Cooperate with slot machine,This machine can produce milling cutter and drills which can reduce the equipment investment .

Main function	Tools		End mill、Drill、Tap、 Reamer、Chamfering
	Applicable		φ1.5mm~φ20mm
	Tools length		35 ~ 200mm
	Longest blade		90mm
	material		carbide、HSS
Product parameters	Power		220V 1.1KW 50/60HZ
	Dimensions		8809001560
	Weight		350KG
	Tools Detection		Contact probe detection with high precision
	Cutting oil		Water-insoluble grinding oil
	Rail oil		（ISO VG32）
	Cutting oil pump		Maximum output flow：24L/M
Grinding wheel spindle	Motor		600W
	Speed		500、3000、4000、6000
	Max peripheral speed of grinding wheel		36m/S
Control shaft	stepping motor for 4 axis	Drive mode	Route	position control resolution
	X axis	ball screw direct drive	300mm	0.002mm
	Y axis	ball screw direct drive	130mm	0.002mm
	C axis	ball screw direct drive	-5°~180°	0.002mm
	A axis	ball screw direct drive	∞	0.02°

Tools applicable: the function can be made according to customer needs, only need to update software.

End mill
Main function	grind end mill, slotting, side blade, R angle＆C angle mill
flutes	2、3、4
Helix angle	0°~60°
relief angle	1°~12°
second relief angle	11°~20°
inclination angle	0°~5°
front angle	0°~5°
Reamer
Main function	Grind guide blade,side blade and end blade of direct blade＆screw reamer
Groove	4 、6、8
Helix angle	-20°~30°
Relief angle	2°~10°
Length of guide blade	0.1~2mm
Apex angle of guide blade	20°~45°
Relief angle	3°~20°
Drill
Main function	grind the cutting edge, chisel edge,chisel edge R angle, cutting edge C angle of plate＆cone drills
Drill flutes	2、3
Helix angle	0°~45°
Apex angle	60°~180°
Relief angle	0°~15°
Second relief angle	11°~40°
Redial angle	5°~65°
Chamfer angle	25°~80°
Chamfer width	0.05~6mm
Tap
Main function	Grind front guide blade, end and front cone of direct blade tap＆screw tap
Groove	2、3、4
Helix angle	-20°~45°
relief angle	2°~10°
Chamfering
Main function	grind cutting blade, slotting and end blade
Flutes	2、3、4、6
Apex angle	60°~150°
Relief angle	1°~10°
