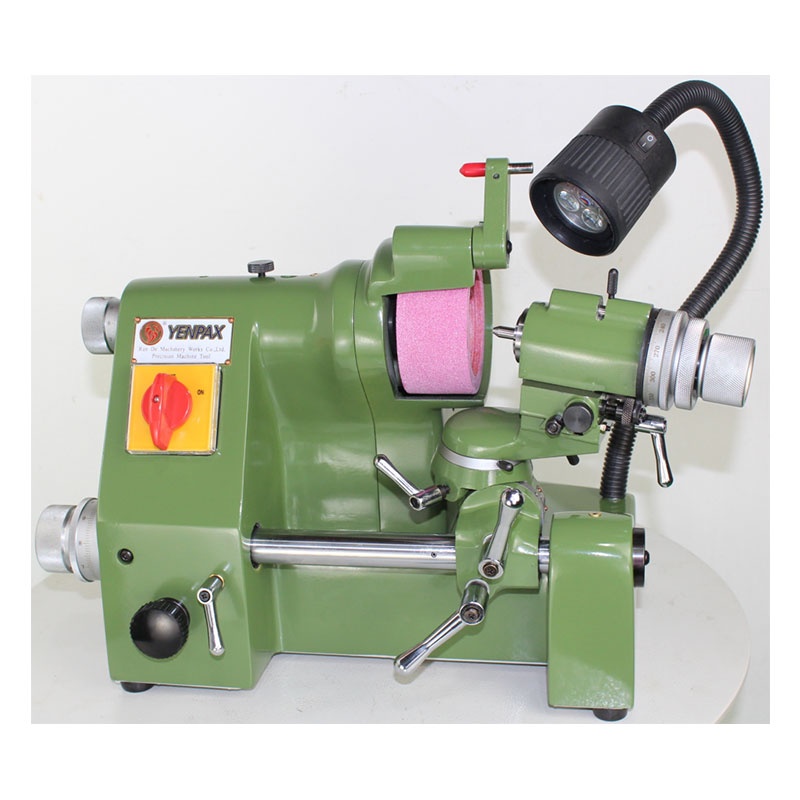

PP-U2 universal cutter grinder
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360degree or 100 rotation is allowed for grinding End Mills, Twist Drill, Lathe Tools, only replace the attachment to the index head without any complex setup.

Universal cutter grinder 's specification
Max. Collet capacity 16mm
Max. Grinding dia 16mm
Taper angle 0~ 180 degree
Relief angle 0~ 45 degree
Negative angle 0~52degree
Grinding spindle 5200 r. P. M.
Cup grinding wheel 100*32*20mm
Motor 1/3HP 220V/380V 50Hz
Net weight 50KG
Gross weight 60KG
Dimensions 50*55*48CM
Packing size 56*55*50CM

Universal cutter grinder's standard Accessory
Diamond Wheel Dresser...1PC
Wheel flange(mounted)...1PC
Collect: 4, 6, 8, 10, 12mm (or inch)...5PC
Grinding Wheel...1PC
Aligning Finger...1PC
Lock Pin...1PC
Drive Belt...1PC

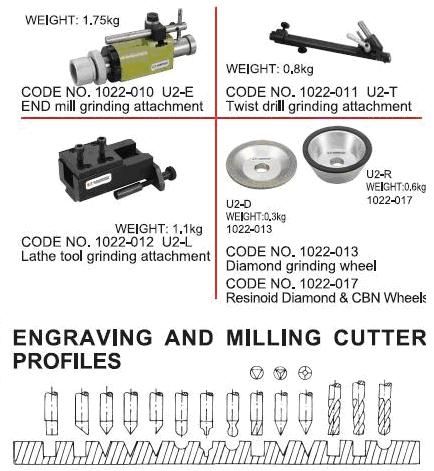

Optional Accessory
End mill grinding attachment
Twist drill grinding attachment
Lathe tool grinding attachment
Diamond grinding wheel
