Multi-point vacuum table

Product No.：2024122492559
Online Inquiry

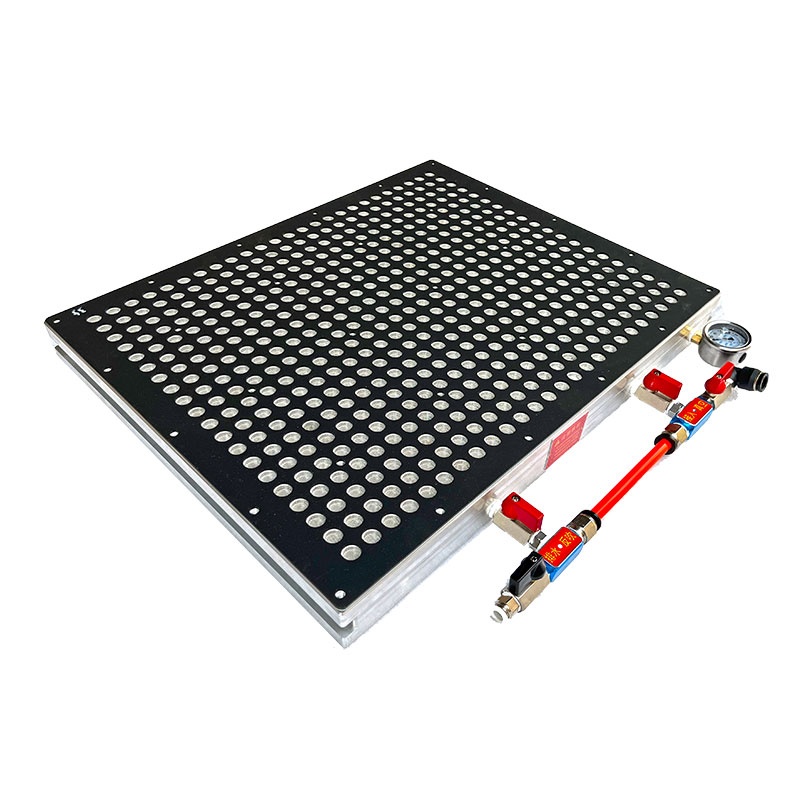

Multi-point VACUUM CHUCK
Upgraded Rapid Adsorption Plate: compares with most vacuum plate fixtures on the market, it does not need sealing strips and glue, or any other tools to fix the workpiece, convenient, quick, and easy!
It is suitable for a variety of material workpieces: it can fix different materials and shapes workpiece with 100% flat base,
like stainless steel, wood, PVC, etc. (note: the square of the workpiece base is recommended larger than 10 x 10 cm， and the height of the workpiece should be between 3 – 25 mm)
Separately Adsorption Hole Design: each hole (414 pcs) comes with a built-in filter, which effectively prevents the metal chips block the hole, even if one hole was blocked, it will not affect other holes' working and ensure the processing finishing.
Dia 6-10 mm position holes (10mm depth max) could be drilled for positioning and clamping auxiliary tools
