Products >> Drill grinder >>

3-30 drill grinder

Product No.：20241220101713
Online Inquiry

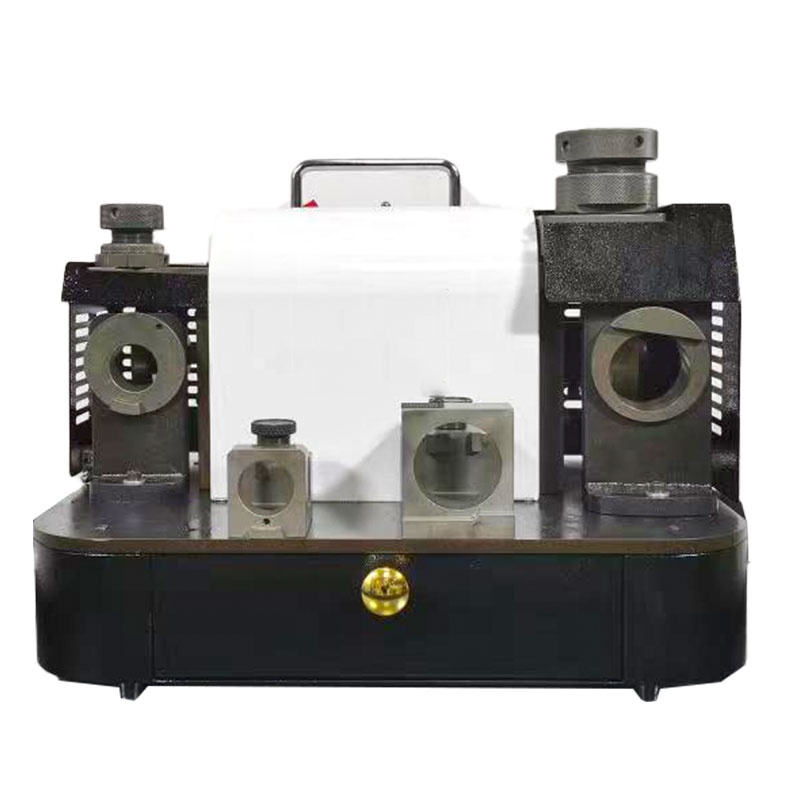

TR-30 Drill grinder

Portable drill grinder, accurate and rapid, easy to operate, with no skill requirement to grind.

Economic and saving cost, improve efficiency.

With Taiwan Grinding Wheel, only one piece can complete all procedure, accurate angle and long service life.

The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.

It can sharpen the drill bit front cutting lip, lip relief angle.

It can be effective co-ordination with the drilling material and speed, can control the quality and accuracy of the work piece, extend the life of the drill bit.

Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.

Model:TR-30
Capacity:3-30MM
Angle:95-135°
Power：220V 500W
Package size:61*28*34CM
weight:33kg
Standard collet:ER20 (3-14 total 12pcs) ER40 (15-30MM total 16 pcs)
Grinding wheel: 3-14 CBN 1pcs,15-30 CBN 1pcs
